| Model | IVO-100S |
| Chamber Volume (ℓ) | 100L |
| Heater Power (kW) | 19kW |
| Temperature | Range | 40~400℃ (Recommended at 380℃) |
| Control | 0.1℃ |
| Accuracy | ±2℃ at 100℃ |
| Controller | Digital PID controls system |
| Sensor | K-type |
| Stability | ±1.0℃ |
| Heat up Time | 200℃ within 30 mins (only chamber empty status) |
| Vacuum | Range | 0~760 Torr Digital type |
| Degree | About 0.1 Torr |
| Material | Interior | Stainless Steel |
| Exterior | Steel, 1.2t, double painted & baked |
| Heater | SUS Pipe Heater |
| Insulation | Mineral Wool (50mm) |
| Door Packing | Molded heat resistant silicone rubber |
| Inner glass | Tempered safety glass, 25mm |
| Heating Method | SUS Sheath heater 2.5kW 1ea /3kW 2ea / 3.5kW 3ea |
| Shelf | 2 |
| Dimension (W x D x H, mm) | Internal | 450 x 500 x 550 |
| External | 1100 x 1260 x 1840 |
| Power | 380V / 3P/ 60Hz |
| Weight (kg) | About 500kg |

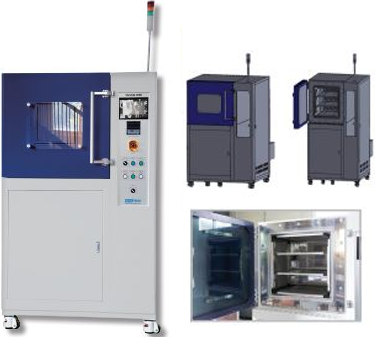

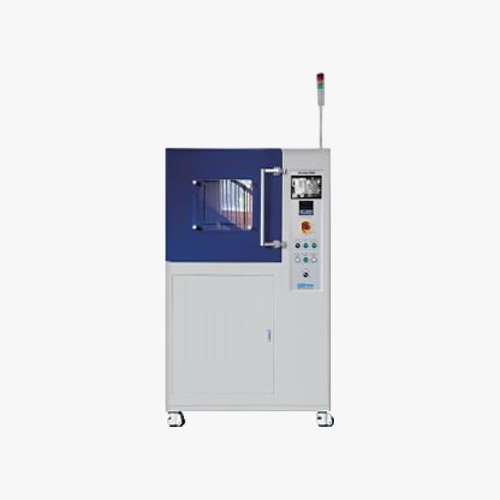

Vacuum Oven for Polyimide Baking
IVO-100S
용도
제품특징
제품사양 (Specification)
*Polyimide Baking
*PCB & Semiconductor Baking for antioxidizing and heating
Maintains great quality by having no contact with oxygen in the chamber
Advantages
진공도 범위 옵션
진공도 범위 옵션 : 10-^3Torr 이상도 가능합니다.
