| Model | VO-16000S |
| Chamber Volume (ℓ) | 16000L |
| Temperature | Range | 60~150℃ (Max 120C) |
| Heat-up time | 120℃ within 60 min |
| Controller | Digital PID Control |
| Vacuum | Gauge | Digital Vacuum Gauge |
| Reach Time | ~ 5 x 10^4 torr within 20 min at empty ~ 1 x 10^4 torr within 50 min at empty (There may be a difference from the actual result.) |
| Dry Pump | · Nominal/Operation Capacity: 3,517/3,000 m2/hr · Ultimate/Operation Pressure: 0.0005/0.001Torr · Booster : 380V 3P, 7.5kw · Pump: 380V 3P, 18.5kw · Booster Inverter Control / Discharger Silencer · Noise Level : 82dB · Chiller 10~15HP included |
| Material | Chamber | Stainless Steel 304 |
| Body | Steel, 1.2t, Powder Coating |
| Sensor | K-Type |
| Insulation | Ceramic Wool |
| Door Gasket | Heat-Resistant Silicone (O-Ring Type) |
| Door Cooling | Will be operated by Chiller or more |
| Viewing Window | Temperature Safety Glass, 12t |
| Heater | 100 kw |
| Cart | Needs to be mutually-confirmed with detailed design. (Product Size: 3000 x 3500 x 45mm, 1Ton) With a cart, total weight: Max 2 Ton |
| Size (W x D x H, mm) | Internal | 4000 x 4500 x 1000 |
| External | 4600 x 5100 x 1500 (External dimension may change upon design) |
| Power | 380V 3P, 150kW, 300A, 50/60Hz |

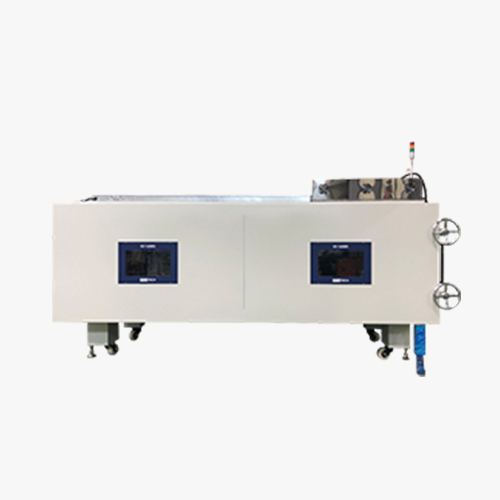

Large-Type Vacuum Oven
VO-16000S
용도
제품특징
주변 환경에 맞게 PID 값을 찾아 정확한 온도 제어 가능 Digital LED or LCD(Option).
제품사양 (Specification)
