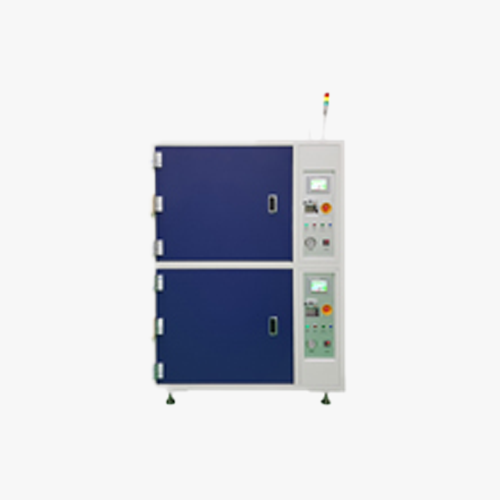

 | | Autoclave for Semiconductors IR-SEMI-600F
용도 well-used for semiconductor industry |
제품사양
| Model | SEMI-550-800F
| IR-SEMI-600F
|
| Chamber Volume | 180L
| 325L
|
| Temperature | Range | 50°C~100°C/Cooling (Option)
|
| Accuracy | ±5°C at 100°C / Cooling (Option)
|
Controller
| Digital PID control system ±1.0°C
|
Stability
| ±1.0°C
|
Heat up time
| 100°C within 20-60 min
|
| Pressure | Range | 1-9 bar or more
|
Interior
| Stainless steel
|
| Exterior | Stainless steel, 1.2t, double painted & baked
|
Heater
| Sheath heater
|
Insulation
| Cerak wool
|
Door packing
| Heat resistance silicone rubber
|
Dimension
(W x D x H, mm)
| Internal
| Ø550 x 600L
| Ø600 x 1100L
|
Working size
| 350W x 350D x 200H
| 380W x 500D x 320H
|
External
| 1450W x 1900D x 1700H
| 1480W x 2400D x 2500H
|
Power
| 220/380V 3P, 50/60Hz(can be re-negotiated)
|
* Electric & Pressure requirements can be fairly decided and fixed with your demands.
* Dual-Chamber Type is also widely manufactured for an operation in different conditions.
* Safety devices are installed for users' protection and convenient to operate.
* All devices are easily-controllable and sectional controls can also be done.
* Rapid heating/cooling function (Cooling Radiator, Heater; high-capacity & temperature)
* Other specifications are always negotiable as we manufacture based on your demands.
